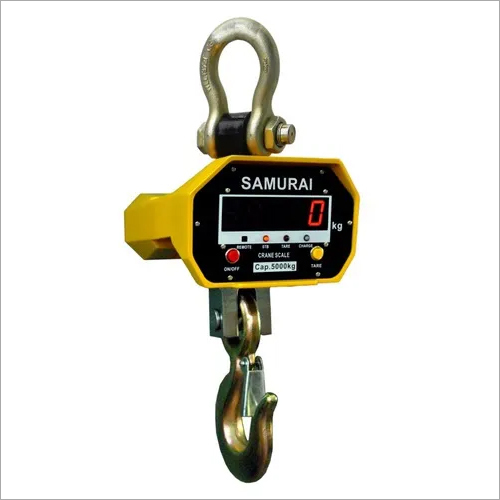

        Crane Scale

        Crane Scale
        Crane Scale
        Product Code : CR01
        Brand Name : SAMURAI TECHNOWEIGH
        Price And Quantity
        • Minimum Order Quantity
        • as per requirement
        • Unit of Measure
        • Piece/Pieces
        Product Description

        CRANE SCALE

        Approximate Price: Rs. 34800.00

        Part Code :- CR01

        Main technical data:


        Accuracy Standard

        According to OIML class III

        Display

        30mm (1.2”) 5 Digit LED

        Filtering

        Low, medium or High selectable

        Unit

        Kilograms or Pounds selectable

        Resolution

        2000 to 3000 division standard up to 15000 available

        Zero Range

        4% F.S

        Tare Range

        100% F.S

        Overload Indication

        100% F.S. +9e

        Max. Safety Load

        125% F.S.

        Ultimate Load

        400% F.S.

        Battery Type

        Fully sealed Lead-Acid Battery

        Battery Size

        6V/4.5Ah

        Battery Life

        ˃ˍ50 hours

        Adapter

        DC 9V/1000mA

        Operating Temperature Range

        -20°C ˷ +50°C

        Operating Humidity

        < 85%RH under 20°C

        Remote Controller Distance

        Max. 15 meters

        Battery of Remote Controller

        AAA battery 1.5Vx2

        Acceleration of Gravity

        9.793 can be regulated

        Features

        • Enclosure : NEMA 12/IP54 powder coated Foundry Cast Aluminu
        • Multi- Weighing Units : Kg, Ib are Selectable, Kg area default unit.
        • Multi-Function Operation : Tare, Zero, Auto Zero Tracking, Total hold, Overload warning and Record, operated through infrared remote controller
        • Gravity regulation : The acceleration of gravity can be regulated through remote Controller according to different place value

        Multi options :

        • RS-232-Continuous or on demand data output, user-selectable
        • Wireless big screen 3”,5”, wireless indicator 180,280,380,580
        • can match with the scale, user –selectable.

        Dimensions and Specifications

        Model

        Capacity

        Resolution

        A(mm)

        B(mm)

        C(mm)

        D(mm)

        E(mm)

        H(mm)

        Weight

        STI-CR

        2000kg

        1kg

        95

        260

        35

        195

        130

        430

        12kg

        STI-CR

        3000kg

        1kg

        95

        260

        45

        195

        130

        460

        13kg

        STI-CR

        5000kg

        2kg

        125

        325

        55

        235

        158

        525

        19kg

        STI-CR

        10000kg

        5kg

        140

        325

        65

        235

        158

        660

        29kg

        STI-CR

        15000kg

        5kg

        175

        345

        70

        235

        160

        805

        57kg

        STI-CR

        20000kg

        10kg

        175

        345

        85

        235

        160

        870

        63kg

        Trade Information
        • Payment Terms
        • Cash Advance (CA), Cheque, Others
        • Delivery Time
        • 1 Week
        • Sample Available
        • Yes
        • Packaging Details
        • carton packing
        • Main Domestic Market
        • Haryana, Delhi
