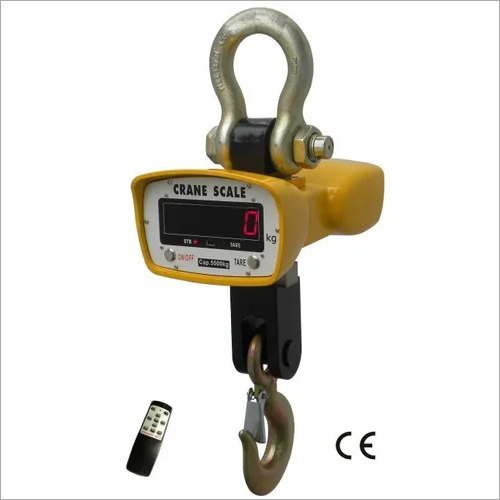

ELECTRONIC CRANE WEIGHING SCALE

ELECTRONIC CRANE WEIGHING SCALE
ELECTRONIC CRANE WEIGHING SCALE
Send Inquiry
Product Code : CR19
Product Description

ELECTRONIC CRANE WEIGHING SCALE

  • Approximate Price: 34800.00
  • Part code:- CR19

Main technical data:

Accuracy Standard

According to OIML class III

Display

30mm (1.2”) 5 Digit LED

Filtering

Low, medium or High selectable

Unit

Kilograms or Pounds selectable

Resolution

2000 to 3000 division standard up to 15000 available

Zero Range

4% F.S

Tare Range

100% F.S

Overload Indication

100% F.S. +9e

Max. Safety Load

125% F.S.

Ultimate Load

400% F.S.

Battery Type

Fully sealed Lead-Acid Battery

Battery Size

6V/7Ah

Battery Life

˃ˍ70 hours

Adapter

DC 9V/1000mA

Operating Temperature Range

-20°C ˷ +50°C

Operating Humidity

< 85%RH under 20°C

Remote Controller Distance

Max. 15 meters

Battery of Remote Controller

AAA battery 1.5Vx2

Acceleration of Gravity

9.793 can be regulated

 Features

  • Enclosure :NEMA 12/IP54 powder coated Foundry Cast Aluminium
  • Multi- Weighing Units :Kg, Ib are Selectable, Kg area default unit.
  • Multi-Function Operation :Tare, Zero, Auto Zero Tracking, Total hold, Overload warning and Record, operated through infrared remote controller
  • Gravity regulation :The acceleration of gravity can be regulated through remote Controller according to different place value

Multi options :

  • RS-232-Continuous or on demand data output, user-selectable
  • Wireless big screen 3”,5”, wireless indicator 180,280,380,580
  • Can match with the scale, user –selectable.

Dimensions and Specifications

Model

Capacity

Resolution

A(mm)

B(mm)

C(mm)

H(mm)

N. Weight

G. weight

STI-CR

1000kg

0.5kg

80

340

30

420

12kg

16kg

STI-CR

2000kg

1kg

80

340

30

420

12kg

16kg

STI-CR

3000kg

1kg

100

340

40

600

14kg

19kg

STI-CR

5000kg

2kg

130

360

45

720

25kg

30kg

STI-CR

10000kg

5kg

145

360

60

850

40kg

45kg

STI-CR

15000kg

5kg

170

360

85

900

75kg

80kg

STI-CR

20000kg

10kg

190

360

85

1000

80kg

85kg
