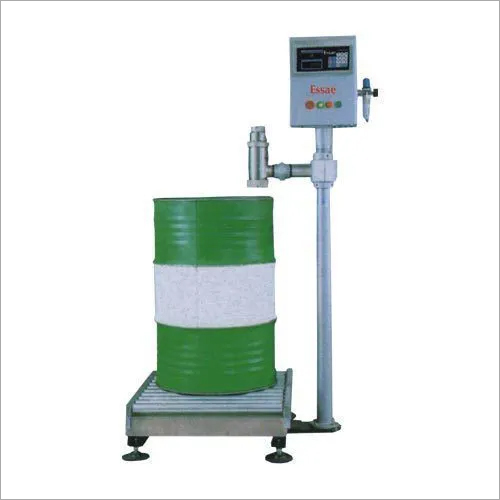

            Liquid filling scale

            Liquid filling scale
            Liquid filling scale
            Product Code : LF01
            Brand Name : Essae
            Product Description

            Filling Oils/ Liquid materials in Jar, Can, Tin and Bottle in many industries. We also offer Industrial Oil Filling Machine and Heavy Duty Oil Filling Machine to our valuable clients. Some of the features and specifications of our Jar/Can/Tin and Bottle Filling Machines are as follows

            Products Features :

            • Latest Micro controller based design
            • Large bright VFD display
            • Heavy Duty Load cell for rough handling
            • SS Platter (30kg only)
            • Coarse and fine feed for better accuracy
            • Auto calibration
            • High internal count greater than 1,00,000 counts
            • Gross/Net Filling, Auto Start
            • Memory backup for set values
            • Roller for easy loading and unloading of drum (for 300kg only

            Applications: Edible Oils / Lubricants / Chemicals Other Liquids

            Detail of Automatic Oil Filling Machine :-

            Specifications

            Tin Filling

            Drum Filling

            Capacity

            30 Kg

            300 Kg

            Filling accuracy

            +/-5g (Depends on speed of filling,

            Fluid properties and conditions)

            +/-50g (Depends on speed of filling,

            Fluid properties and conditions)

            Filling speed

            2 ½ tins per minute for standard 15kg oil tin (depends on oil level in tank)

            100 seconds for filling 200 liters (depends on oil level in tank)

            Platform size

            400mm x 400 mm

            700 mm x 800 mm

            Power source

            230v (+15% /- 10%) AC, 50Hz

            Power consumption

            30 W

            Operating Temp

            0 to 45°c

            Weight Display

            5 digits

            Nozzle diameter

            25mm

            45mm





            Site Requirements :-

            Compresses air

            4 Bar, 500cc/min (Air inlet size :1/8” BSP)

            5 Bar, 200 cc/min (Air inlet size :1/8” BSP)

            Height of oil inlet

            750mm to 825mm adjustable

            870mm to 900mm adjustable

            Thread size of oil inlet

            1½” BSP

            2” BSP
