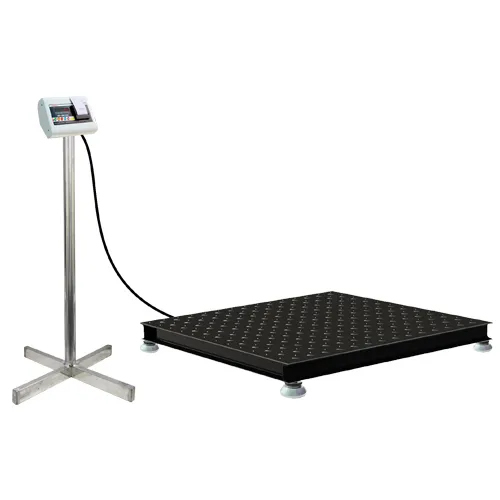

Low Profile Weighing Scale with two side ramp

Low Profile Weighing Scale with two side ramp
Low Profile Weighing Scale with two side ramp
Send Inquiry
Product Code : FWS-07
Product Description

Low Profile Weighing Scale with two side ramp

  • Approx. Price: -225000.00
  • Code: -FWS-07

Samurai Technoweigh India offers both, low profile and portable scales for applications where required. The platform’s ultra-low profile simplifies the job of moving loads onto and off the scale quickly, safely, and easily. Optional ramps are available to eliminate the need for lifting loads onto the platform. We have done deep research on the usage of the machine and have designed it in a manner which is very user friendly. The machine is easily portable and can be used easily for the industrial usages.  This weighing scale comes with the feature of trolley weighment system which weighs the trolley and offers the movement of the object to be weighed.

Technical Specification: -

  • Frame Work Stainless Steel
  • Platter Stainless Steel
  • Load Cell 4 No. Single handed Shear Beam
  • Load Cell Type Tool Steel IP-67
  • Junction Box
  • Display Green LED
  • Weighing Area 1200 X 1200mm
  • Weighing Area height is 45-50mm from the ground label
  • Material Movement will be 1200mm side
  • Pole is not attach to the platform
  • Single side Ramp 1200 X 300mm
  • Platter will be welded one, since single sheet not available
  • Only Distributed /Even load should be applied on the platform
Application:
  • Pharma Industries
  • Food Industries
  • Chemical Industries
  • Trolley Weighment
Options: -
  • In-built RS-232 Interface
  • Kg to Letter conversion
  • Check weighing
  • Remote display (pole/wall Mounting)
  • Green display LED
  • Two color tower lamps (Red & Green color)

Technical Specification:


Capacity (kg.)

Accuracy (g)

Load Cell

Platform Size (mm)

Frame

Platter

500

100 | 200

Tool Steel

1000x1000 | 1200x1200

Mild Steel

MS Chequered plate

500/1000/1500

2000/3000/5000

100 | 100 | 200

500 | 500 | 1000

Tool Steel

1000x1000 | 1200x1200

1500x1500 | 1800x1800

Mild Steel

MS Chequered
